The Vatech A9 provides the most precise and high-quality panoramic images by combining image processing and accumulated experience in dental imaging from Vatech. This will increase your diagnostic accuracy for improved treatment planning and patient satisfaction.

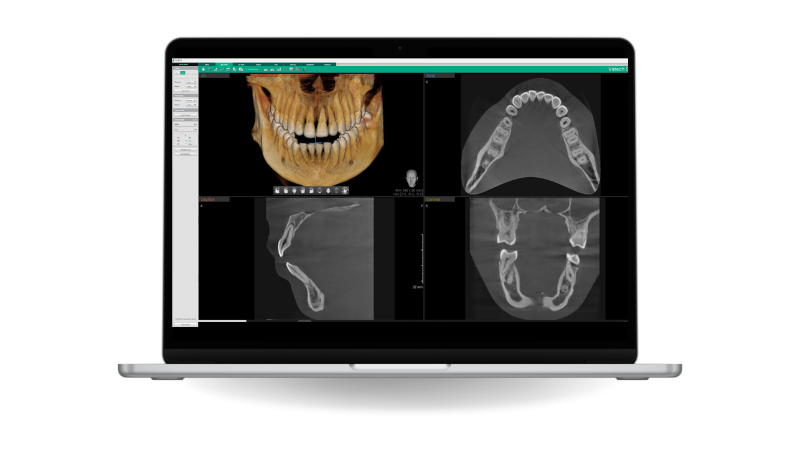

10x8 images enable fundamental diagnoses and treatment planning, including both the maxillary and mandibular areas, in a single scan.
The next step in cephalometric technology, Vatech's new Rapid Ceph minimizes motion artifacts and enables faster diagnostic workflow while providing the highest quality digital images.
| CBCT | PANO | CEPH | |
|---|---|---|---|
| Vatech A9 | | | |
| Vatech A9 RC | | | |
| FUNCTION | FOCAL SPOT SIZE | CT FOV SIZE | VOXEL SIZE | SCAN TIME | GRAY SCALE | TUBE VOLTAGE / CURRENT | WEIGHT |
|---|---|---|---|---|---|---|---|
| CT + Pano + Ceph | 0.5 mm (IEC 60336) | 8x8 cm (10x8 cm Anatomical) | 0.2 mm / 0.3 mm |
CT 15.5 sec PANO 2.7 ~ 13.5 sec CEPH 1.9 ~ 5.4 sec |
14 Bit | 60 ~ 99 kV / 4 ~ 10 mA |
Without CEPH unit 238.76 lbs. (Without Base) 353.84 lbs. (With Base) With CEPH unit 296.08 lbs. (Without Base) 411.16 lbs. (With Base) |
* The specifications are subject to change without prior notice.
| Without CEPH unit | With CEPH unit | |
|---|---|---|
| TOP VIEW |
|
|
| FRONT VIEW |
|
|
*An additional 3 inches (76.2 mm) of space is required behind the unit for wall mount bracket installation
(mandatory unless there is a base mount installation).
