![Vatech Web [Product Vatech PaX-i 3D Smart]](https://www.vatecheurope.com/wp-content/uploads/2023/08/Vatech-Web-Product-Icons-1.png){kind=icon}
Smart
- Anatomical FOV 12×9 cm
- One Scan Two Images
- 10-Year Sensor & Generator Warranty
- 5-Year Full parts Warranty
One scan with a Smart gives you not just a CT image but also an Auto Pano image. This means, patients who require both images do not need to undergo two X-ray scans. Also, CT and Auto Pano images are displayed within the One Viewer feature.
Want more information about the Smart?
We are ready for you to contact us and arrange a meeting online or offline.
![Vatech Web [Funkce Extended Arch Sharpen FOV preview]](https://www.vatecheurope.com/wp-content/uploads/2023/08/Vatech-Web-Funkce-Extended-Arch-Sharpen-FOV-preview.png)
Extended Arch Shaped FOV
The innovative FOV of the Smart provides an arch-shaped volume 12×9 cm, which shows a wider view of dentition compared to other devices of the same FOV.
Normally, a FOV 10×8.5 image shows tooth #8. However, when the tooth is lying on its side, there is a high possibility that the tooth will be cut out of the image. The “arch-shaped volume” eliminates this possibility and shows the hidden dentition area.

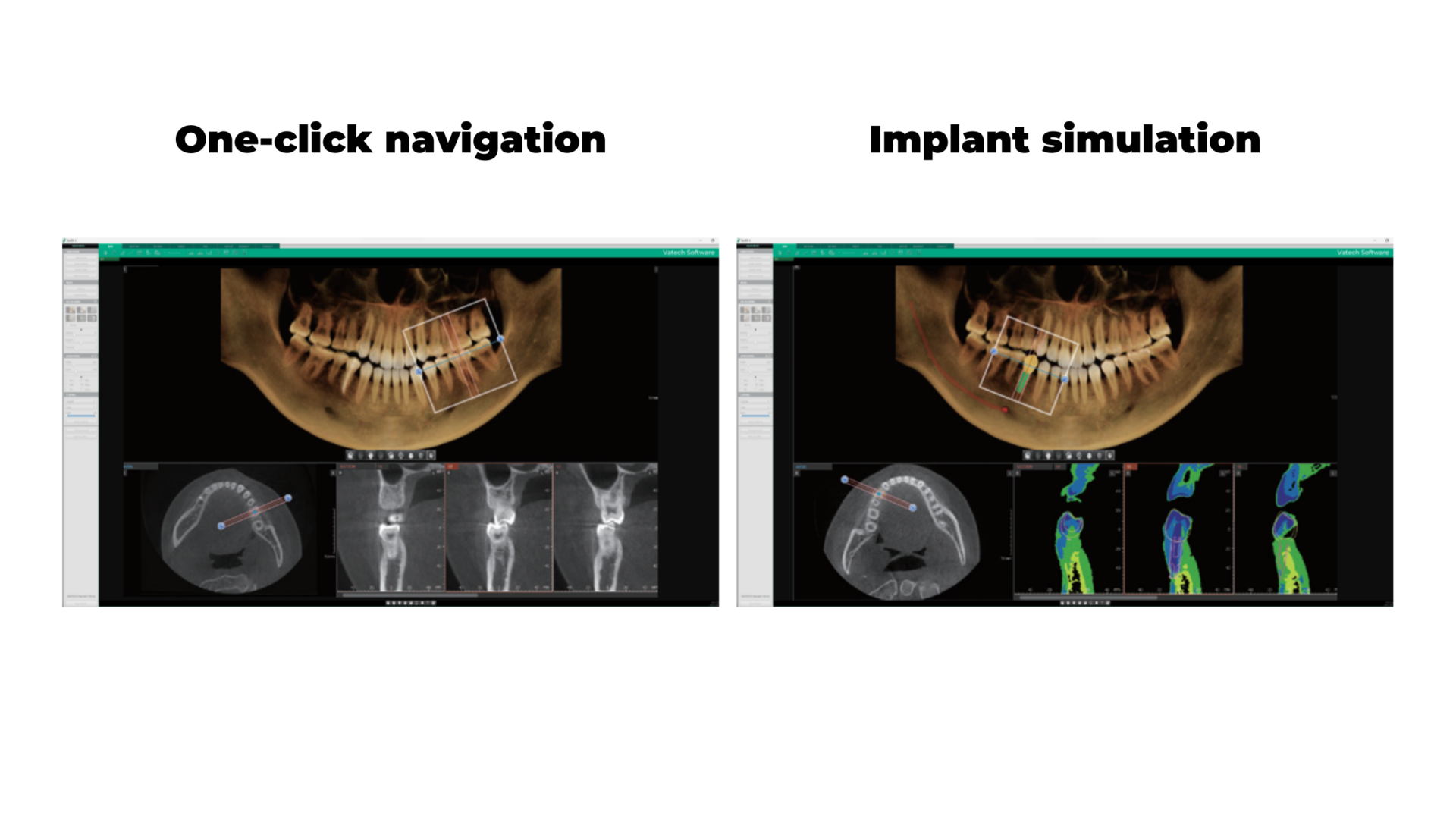

3D & 2D in One Viewer
Viewing 2D and 3D images together provides many benefits.
There is no need to utilize 2 different software programs and the one viewer feature presents a professional look for your patients.
This configuration helps patients to better understand the images, which will ultimately lead to an increase in patient acceptance rates.
![Vatech Web [Funkce 2D & 3D Viewer preview]](https://www.vatecheurope.com/wp-content/uploads/2023/08/13.png)
Smart Solution for your practice
Want more information about the Smart? Just click on the following button and fill in the form. We will contact you together with one of our local partners as soon as possible.
Be Smart when you're Implanting
The Smart ART-V technology in Smart unit provides users with powerful images that are not affected by metal artefacts, for example in implantology cases.
The detailed information from Smart images allows implantologists to minimize the risk of complications such as nerve damage, cavity perforation and implant malposition. This leads to safer procedures and more favorable outcomes for patients.
One Scan, Two Images
One scan with the Smart gives you not just a CT image but also an Auto Pano image.
This means, patients who require both images do not need to undergo two X-ray scans. Also, CT and Auto Pano images are displayed within one viewer.
This will save you and the patient a lot of time.
![Vatech Web [Funkce CT & Auto Pano preview]](https://www.vatecheurope.com/wp-content/uploads/2023/08/12.png)
The Smart is protected by an exclusive 10-Year sensor & generator warranty.
Would you like to get more information about the Smart?
Click on the button and fill out the form. Together with one of our local partners we will contact you as soon as possible.
Specifications of the Smart
| Function (Device Type) | 3 in 1: Pano + CBCT + Ceph |
| Voxel size | 0.08–0.3 mm |
| Focal Spot Size | 0.5 mm |
| FOV size without stitching | 5×5, 8×8, Anatomical 12×9 cm |
| FOV Double Scan | N/A |
| Auto Pano | Yes |
| Exposure Time | Pano: 2.6–13.5 sec Ceph: 1.9–12.9 sec CBCT: 11–16 sec |
| Dynamic range | 14 bit |
| Panoramic type | Pano + Magic Pan + Auto Pano (Hybrid Sensor for 3D & 2D) |
| Patient position | Standing, seated, wheelchair, face to face positioning |
| Warranty | 10-year Sensor & Generator, 5 year full parts warranty |
| Dimension | 188.21 cm×39.16 cm×233.68 cm |
| Weight | 161.96 kg (with the Base) |
| SW | EzDent-i / Ez3D-i / EzOrtho |
| Key Features | CBCT with OPG, with a 5-year warranty and the latest technology for the reduction of metal artefacts, is the ideal instrument for any clinic. CT scan always with generated OPG. The anatomical FOV of 12×9 cm allows scanning both jaws at the same time, without compromising the distal section. Artificial intelligence in 3D and Ortho sw. Implant database, Dicom + STL merging. |
Dimensions of the Smart 3D CBCT unit
*An additional 76.2mm of space is required behind the unit for wall mount bracket installation (mandatory unless there is a base mount installation).

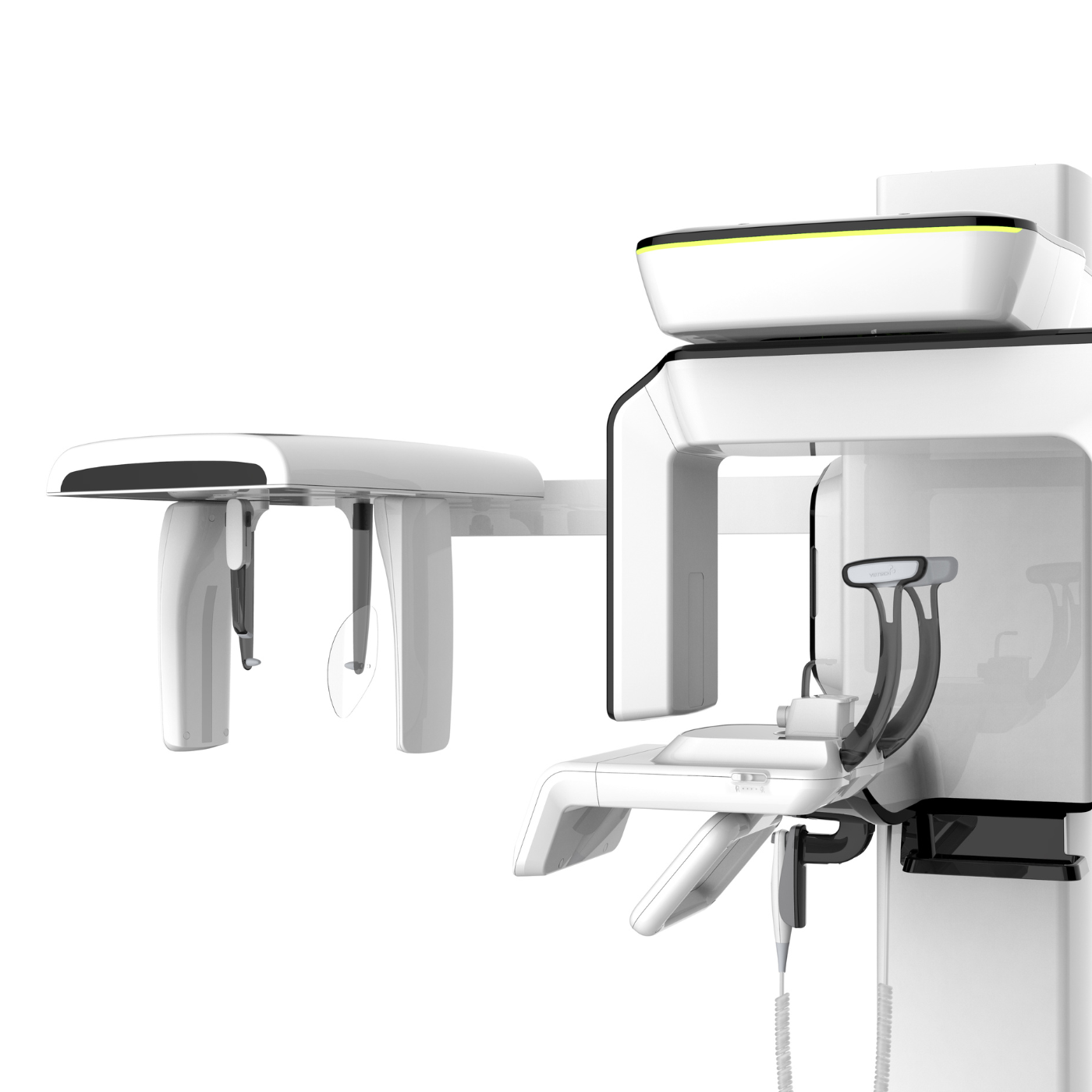

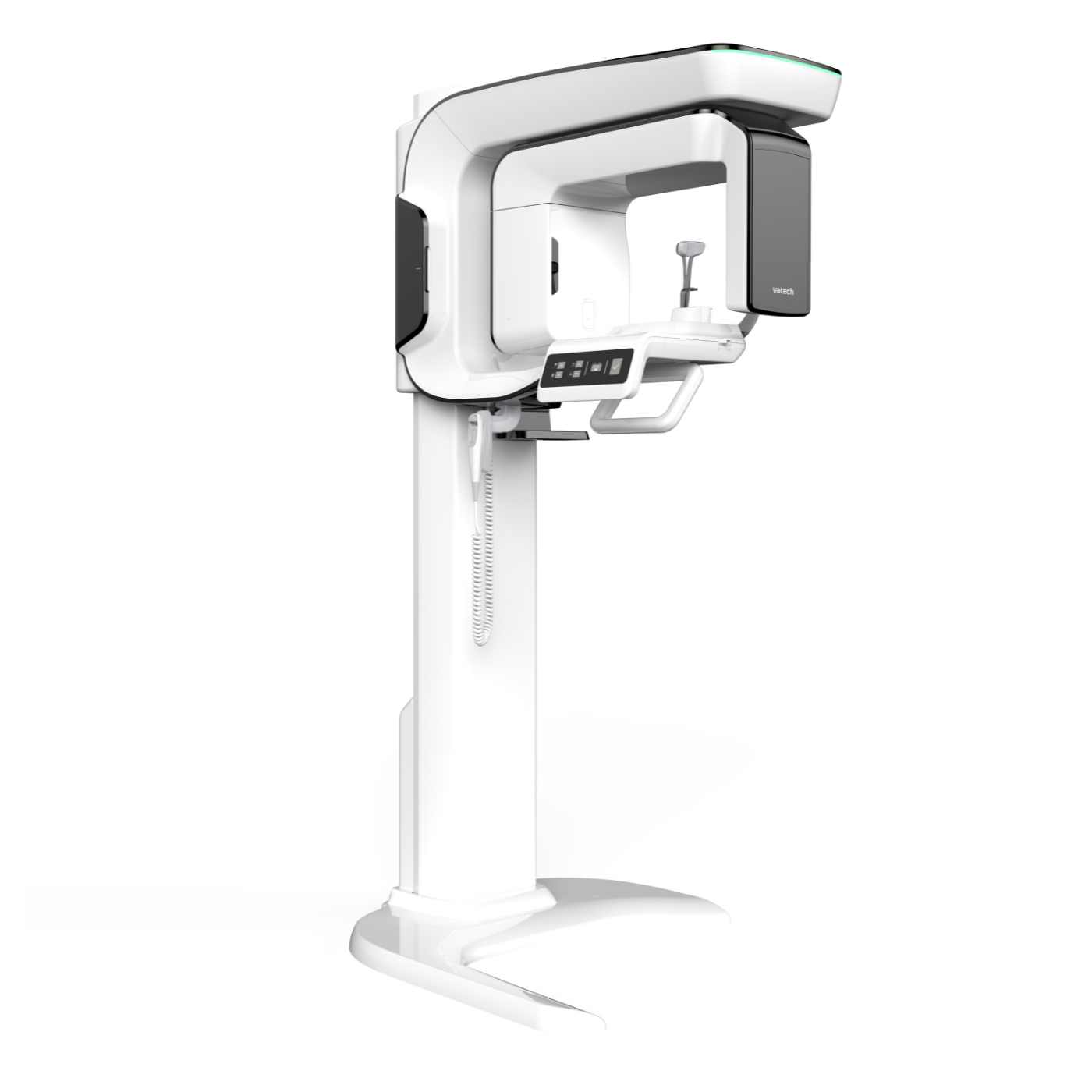

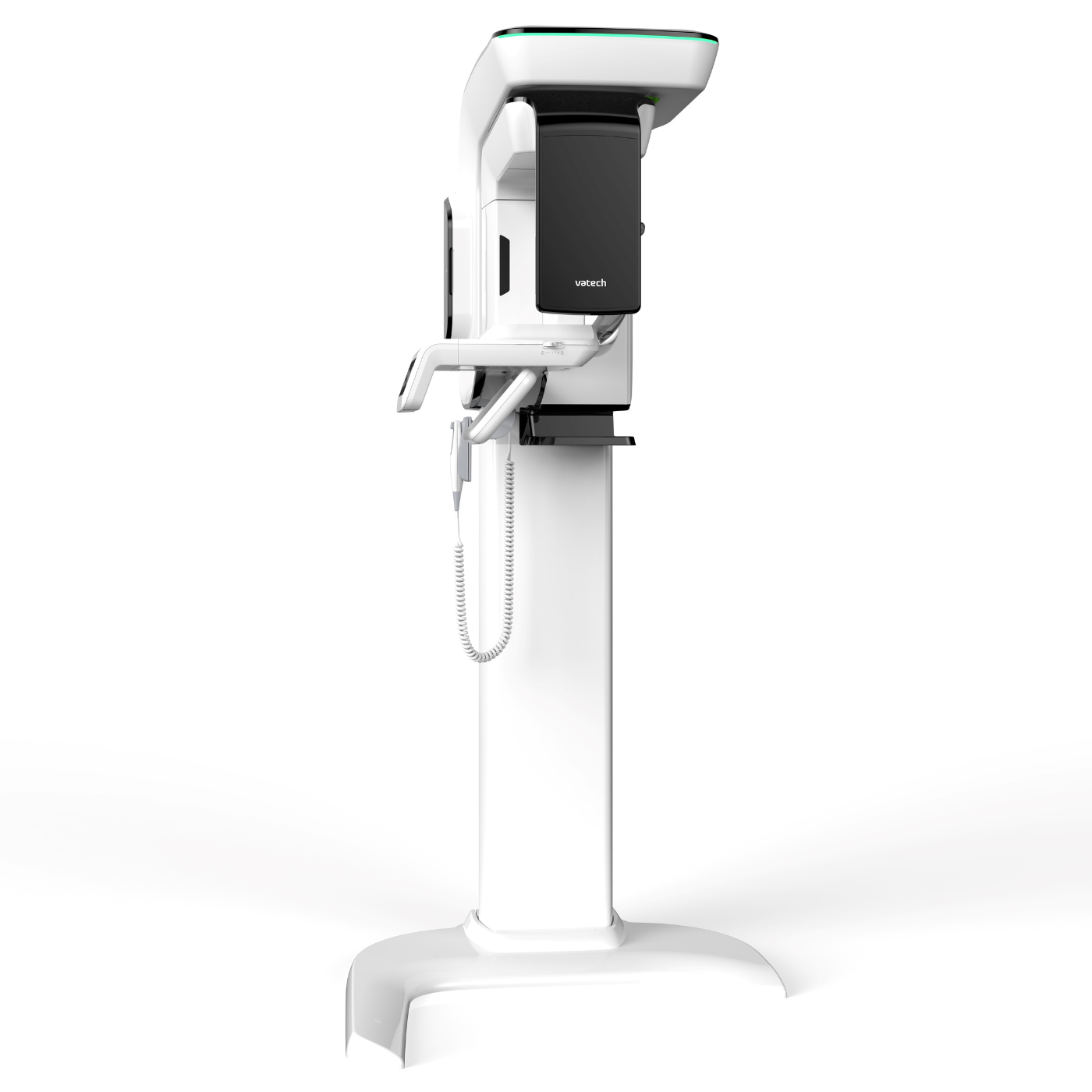

Image Gallery of the Smart
The Smart from Vatech is the perfect 3D CBCT for every dental office.
