The Next Evolutionary Step Forward in Panoramic Imaging.
The PaX-i Insight is capable of taking a multi-layered panoramic
image called an Insight Pan which provides a unique, in-depth look across a single focal trough.
Because each patient may have a slightly different arch, conventional panoramic images may occasionally miss important
details which land outside of a single focal layer.
Insight Pans are capable of capturing multiple-layered Insight pans, insuring
that all details are captured in a depth-added panoramic image.
The next step in cephalometric technology, Vatech's new Rapid Ceph minimizes motion artifacts and enables faster diagnostic work flow while providing the the highest quality digital image.
The next-generation in panoramic technology, Insight pans allow doctors to obtain never before seen,
in-depth diagnostic information from the anterior to posterior on a digital panoramic image.
The Insight feature allows doctors to explore their region of interest, giving the capability
to find mesiobuccal, distobuccal, and even palatal root information.
Hidden multi roots and canals | Location of pulp and gutta-percha | Broken file or root fractures
| PANO | CEPH | |
|---|---|---|
| PaX-i Insight | | |
| PaX-i Insight RC | | |
| FUNCTION | FOCAL SPOT | SCAN TIME | GRAY SCALE |
|---|---|---|---|
| Pano + Ceph | 0.5 mm (IEC60336) | Pano - Normal (10.4/14.0/21.0 sec) / Insight PAN (10.4 sec) Ceph - 1.9 / 3.9 sec |
14 bit |
| TUBE VOLTAGE/CURRENT | WEIGHT | DIMENSIONS |
|---|---|---|
| 60 ~ 99 kV / 4 ~ 10 mA | Without Ceph unit : 209.4 lbs -without Base / 297.6 lbs -with Base With Ceph unit : 264.5 lbs -without Base / 352.7 lbs -with Base |
Without Ceph unit : 38.98 Inch(L) x 47.24 Inch(W) x 90.55 Inch (H) With Ceph unit : 75.98 Inch(L) x 47.24 Inch(W) x 90.55 Inch (H) |
* The specifications are subject to change without prior notice.

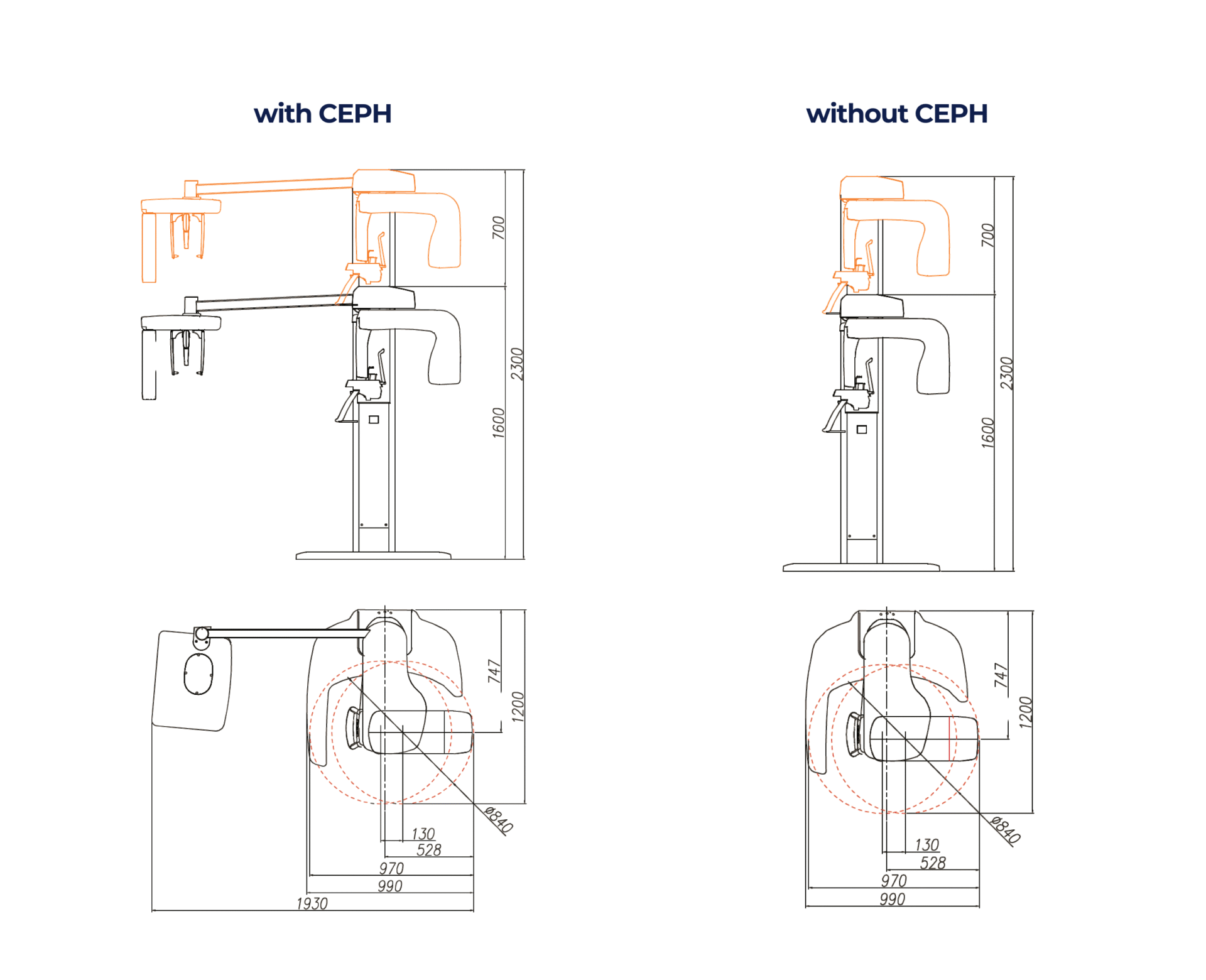

| TOP VIEW | FRONT VIEW | |
|---|---|---|
| With CEPH unit |
|
|
| Without CEPH unit |
|
|
