Green X™ 12
- Smart Focus | 1 scan ~ 5 images
- 49.5 µm Endo Mode with AI segmentation
- Multi-Fov Selection
- up to 10-Year Warranty for Sensor
- up to 10-Year Warranty for Generator
The Green X 12 is a cutting-edge device that offers advanced imaging capabilities for a wide range of dental procedures. This device is designed to meet the needs of all types of dentists, from implantologists to endodontists.
One of the most significant advantages of this machine is its ability to capture one Full Arch 12×8.5 image, 3 highly detailed 4×4 images and Auto Pano image at the same time.
Do you want more information about Green X 12?
Do not hesitate to contact us and arrange an appointment or online meeting.
Smart Focus ~ 1 scan, 5 images
Smart Focus function will save you a lot of time, improve workflow and reduce patient exposure.
You get up to 4 complete 3D CBCT data sets & Auto Pano that you can switch between based on your diagnostic needs.
From Full Arch 12×8.5 to Endo mode 4×4 cm in any location.
Endo Mode ~ 49.5 µm
With its 4×4 cm volume mode and 49.5-micron voxel size, the Endo mode will optimize treatment of highly focused regions of interest.
It is ideal for endodontic use because the dentist can achieve an extraordinary image in a high-resolution voxel size.
Additionally, AI segmentation offers Two Click-based automatic Root Canal Drawing with automatic measurement of its lenght and diamerer.
Select among 5 types of Multi-FOV
Depending on the purpose of treatment, it is possible to select among 5 types of Multi-FOV or Smart Focus function.
With Green X 12 you can select from 4×4 cm Endo Images with the highest resolution to 8×5 cm, 8×8 cm and 12×8.5 cm images with low dose.
You can also get 12×14 images with Double Scan function to get optimal information for diagnosis of the entire dental arch, including the TMJ.
Use AI to work w. Green X 12
In today’s rapidly evolving dental field, AI is reshaping how professionals diagnose and plan treatments — and Vatech’s Ez 3D-i software puts that power to work, enhancing speed, precision, and clinical confidence.
Featuring AI-driven tools like automatic anatomical segmentation, intuitive two-click root canal tracing with precise length and diameter measurements for Endo procedures, and smart implant planning with crown mirroring, Ez 3D-i helps doctors work more efficiently and deliver better patient outcomes.
Discover how AI in Ez 3D-i can transform your workflow and elevate patient care.
Mandibular Canal Drawing
Understanding the exact location and trajectory of the mandibular canal is critical for safe and effective treatment planning — especially in procedures like dental implant placement, orthognathic surgery, and other surgical interventions.
With Ez 3D-i, Vatech takes the guesswork out of tracing. The software’s AI-powered tools automatically detect and draw the mandibular canal with remarkable speed and accuracy, helping clinicians plan procedures more confidently while reducing the risk of nerve damage.
Experience faster, safer planning with automatic mandibular canal tracing in Ez 3D-i.
Green X 12 comes with up to 5-Year Full parts warranty & unique up to 10-Year sensor and generator warranty.
Interested in Green X 12 and want more information?
Click on the button and fill out the form. Together with one of our distributors we will contact you in the nearest possible time.
Green X 12 Specifications
| Function (Device Type) | 4 in 1: Pano + CBCT + Ceph + Model scan |
| Voxel size | 0.049 mm - 0.3 mm |
| Focal Spot Size | 0.5 mm |
| FOV size without stitching | 4 × 4, 8 × 5, 8 × 8, 12 × 8.5 cm |
| FOV Double Scan | 12 x 14 cm |
| Auto Pano | Yes |
| Exposure Time | Pano: 1.4 – 13.5 sec Ceph: 1.9 – 4.9 sec CBCT: 9 – 16.9 sec |
| Dynamic range | 14 bit |
| Panoramic type | Pano + Magic Pan + Insight Pan with free FOV |
| Patient position | Standing, seated, wheelchair, face to face positioning |
| Dimension | 1085.0(L)×1343.5(W)×2345.4(H) mm |
| Weight | 217,9 kg (without Ceph) 242,9 kg (with the Ceph) |
| SW | EzDent-i / Ez3D-i / EzOrtho |

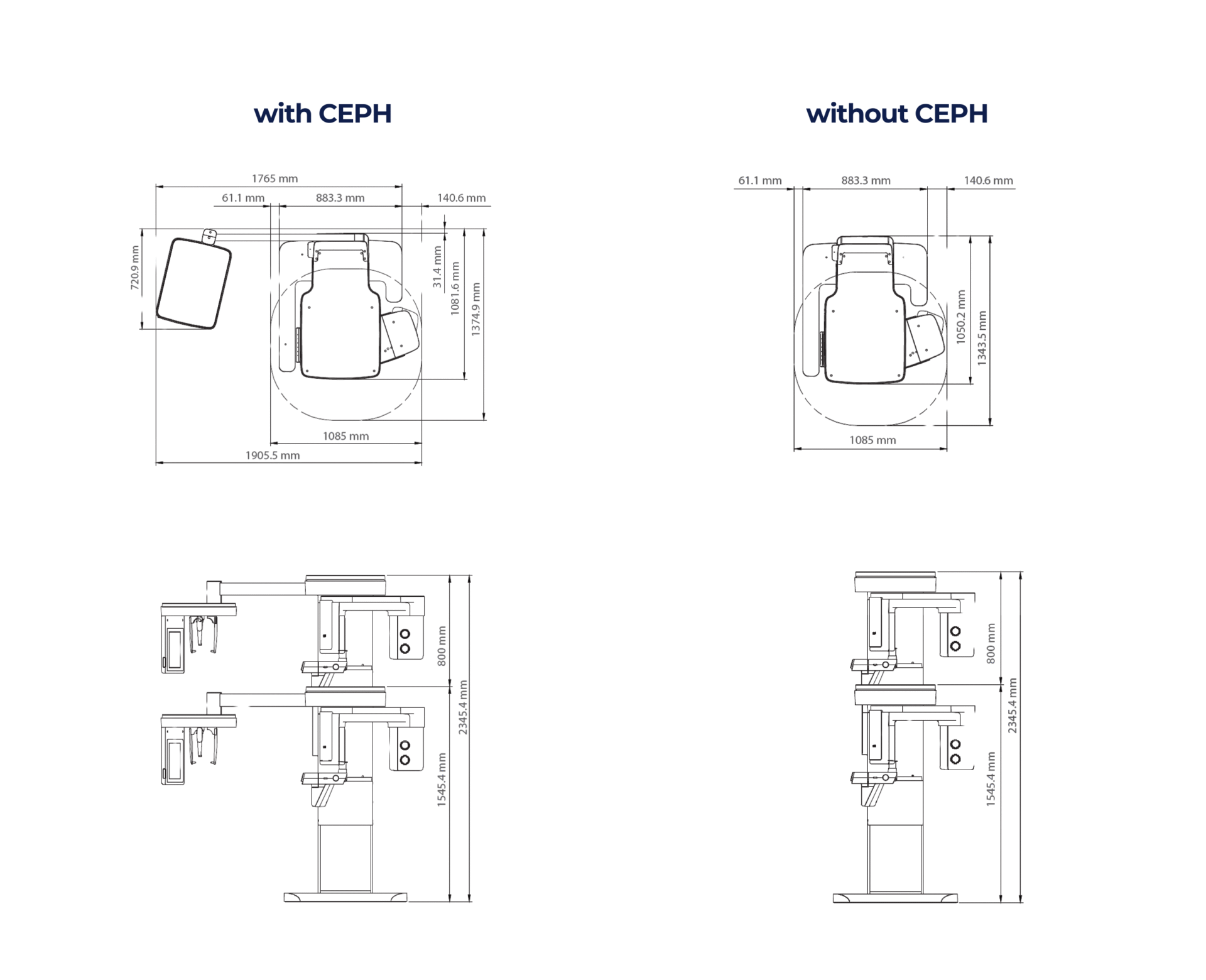

Green X Dimensions
Green X 12 Image Gallery
The Green X 12 is an advanced digital X-ray imaging system that incorporates pano, ceph (Optional), CBCT and model scan.
It provides high quality images with lower radiation by combining image processing with Vatech’s extensive experience in the dental imaging field. This will improve your diagnostic accuracy, which will lead to increased treatment planning and patient satisfaction.
Elevate Your Practice with Green X 12
Upgrade to Green X 12 today and unlock a new level of precision and diagnostic power.
